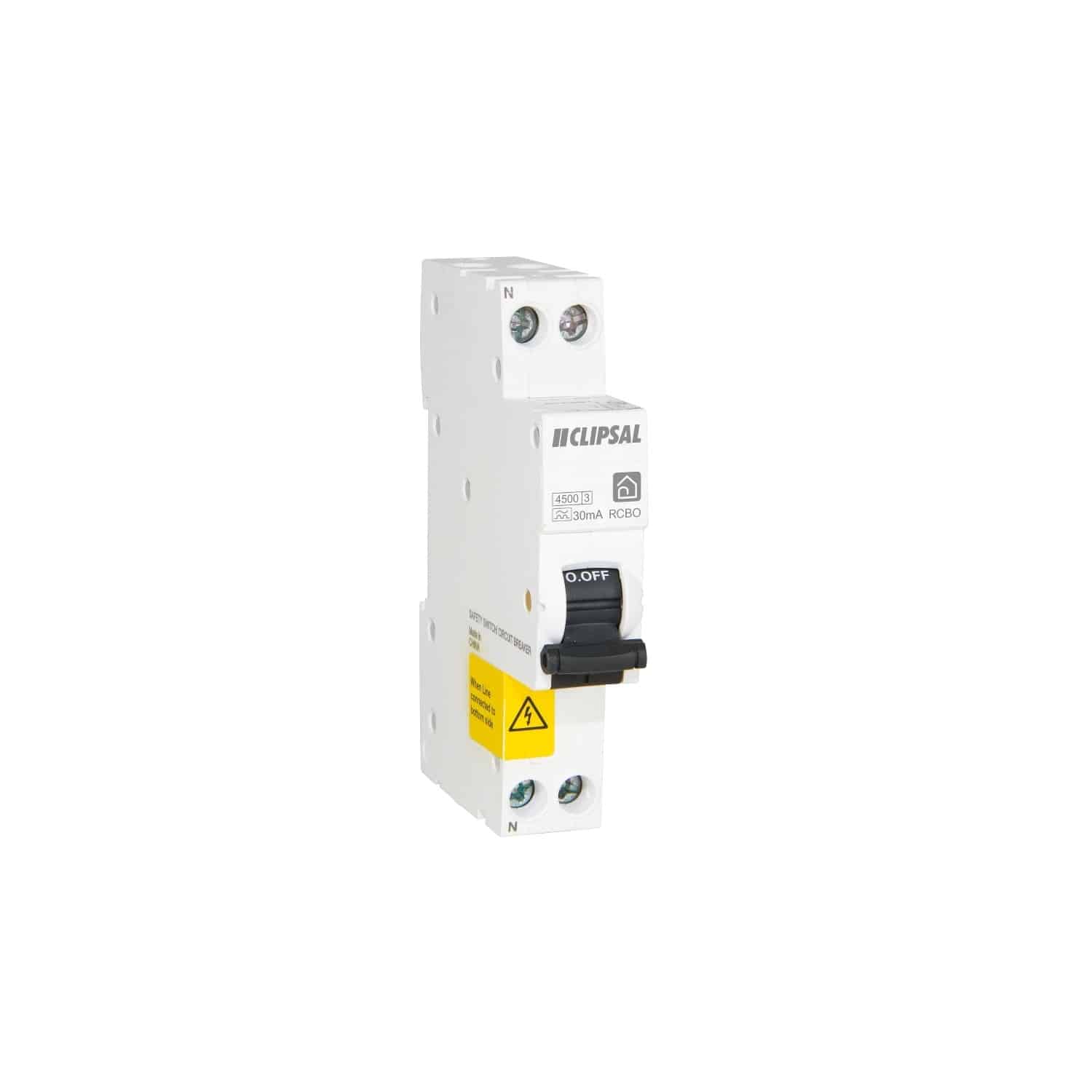

Clipsal Resi MAX RCBO 1P+N C Curve 32A 30mA 4.5kA Type A Slim | RCBE232/30S

RCBO, Resi MAX, 1PN, C, 32A, 1PN, 30mA, A, SLIM This Resi MAX is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole and 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The Icu rated short circuit breaking capacity is up to 4.5kA according EN/IEC 60947-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It also has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is compliant with AS/NZS 61009 standard. The Ue operational voltage is 240VAC. It can be mounted on DIN rail for modular installation. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.
